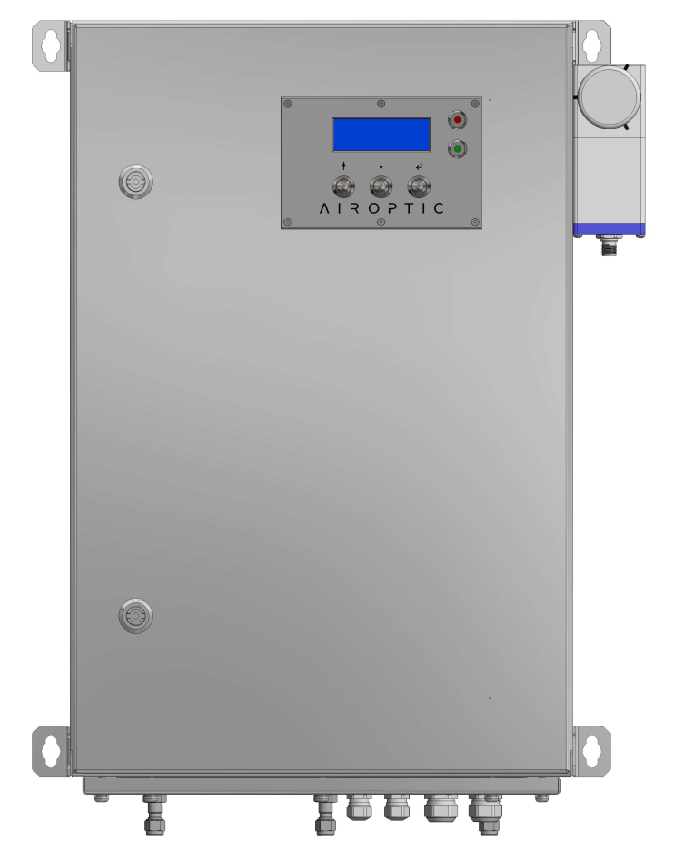

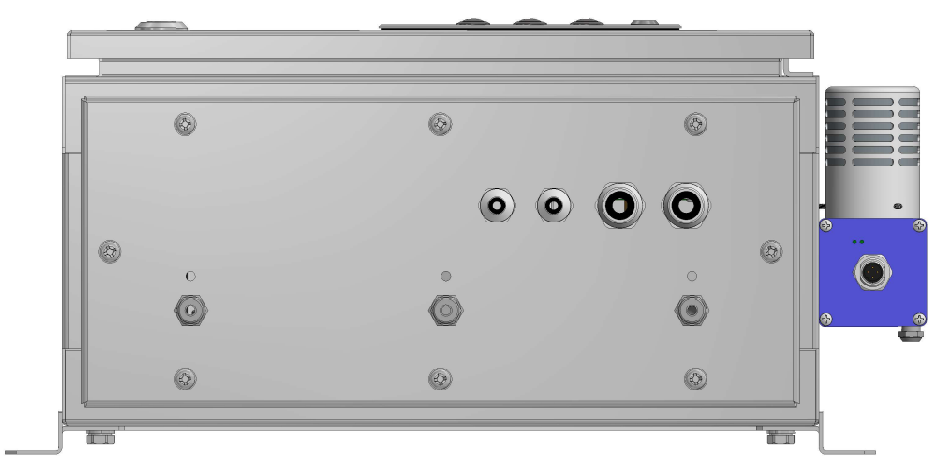

GasEye Extractive Wall Mounted type analyzer exists in general purpose and hazardous area configuration (version Ex1). It exists in several various configurations from single gas to multi gas applications. The system is IP66 rated with ambient temperature ranges from -30ºC to +60ºC and can be mounted outside without a need for a container.
GasEye Extractive Ex1 provides Ex p (purge and pressurization) type of explosion protection. Ex p pressurized equipment is the technique of guarding against ingress of the external atmosphere into an enclosure by maintaining a protective gas therein at a pressure above that of the external atmosphere. The overpressure is maintained either with or without a continuous flow of the protective gas.
Specification: Dimensions:
width x height: 460 mm x 230 mmdepth: 650 mm
Weight: 60 kg Gas connection: connector 6 mm Swagelok
Materials: Housing: SS 1.4301 (AISI 304) Internal process cell: SS 1.4404 (AISI 316L) Cell window: sapphire Safety: Low Voltage Directive (LVD) 2014/35/EU PN-EN 60825-1:2014-11 – Safety of laser products – Part 1: Equipment classification and requirements PN-EN 61010-1:2011 – Safety requirements for electrical equipment for measurement, control and laboratory use – Part 1: General requirements RoHS Directive 2011/65/EU ATEX Directive 2014/34/EU EN IEC 60079-0:2018 – Explosive atmospheres – Part 0: Equipment – General requirements EN 60079-2:2014 – Explosive atmospheres – Part 2: Equipment protection by pressurized enclosure “p” EN 60079-26:2015 – Explosive atmospheres – Part 26: Equipment with Equipment Protection Level (EPL) Ga EN 60079-28:2015 – Explosive atmospheres – Part 28: Protection of equipment and transmission systems using optical radiation
Explosion protection (standard version):
- ATEX II 3G [Ex op is IIC T6 Gc]
- ATEX II 3D [Ex op is IIIC T85°C Dc]
Explosion protection – ATEX Zone 1/21 (optional version):
GasEye Extractive Ex1:
II 1/2G Ex op is pxb IIC T* Ga/Gb- II 1/2D Ex op is pxb IIIC T** Da/Db
GasEye Extractive Ex1 ET:
- II 1/2G Ex db eb h ia ib op is pxb q IIC T* Ga/Gb
- II 1/2D Ex h ia ib op is tb pxb q IIIC T** Da/Db
*/** temperature class depends on the medium temperature according to:
ID Medium temperature: Ambient conditions: Temperature class: Maximum surface temperature: 1 < 50°C -30°C to 50°C T6 85°C 2 < 100°C -30°C to 60°C T5 100°C 3 < 135°C -30°C to 60°C T4 135°C 4 < 200°C -30°C to 60°C T3 200°C
Certificate No. KDB 20ATEX0056X ENCertificate No. KDB 20ATEX0056X PL
